Produkt -

Model RGT

Vertical and horizontally sliding fire door for conveyor openings

Product Description

In the event of fire, the fire protection closure automatically closes a wall opening, through which conveyor lines (f.e.: interrupted or continuous Roll-, Belt- oder Carrying-Chain-Conveyors) are passing.

construction type

Vertical and horizontally sliding fire door for conveyor openings

closing direction

top down • from left to right • from right to left

fire resistant

up to 3 hour rated

reopening

Motorised (standard)

conveying system

interrupted or continuous Roll-, Belt- oder Carrying-Chain-Conveyors

Downloads

System drawing - VerticalSystem drawing - Horizontal

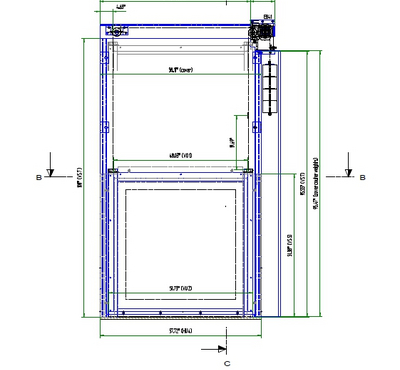

Constructive structure - System drawing - Vertical

Type of Wall

Brick-Wall 8,5 In

Concrete-Wall

Masonry-Walls

Steel jamb Plates
embedded in concrete or masonry walls – or equal value

Width of the Opening (decimal Inch)

width: 70,8 In

height: 84,6 In

area: 598,9 In²

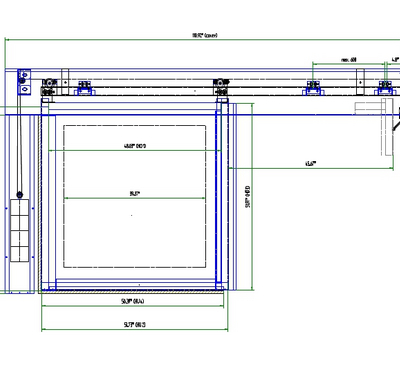

Constructive structure - System drawing - Horizontal

Type of Wall

Brick-Wall 8,5 In

Concrete-Wall

Masonry-Walls

Steel jamb Plates
embedded in concrete or masonry walls – or equal value

Width of the Opening (decimal Inch)

width: 70,8 In

height: 84,6 In

area: 598,9 In²

Durability
