Product Description
- High standardization and thus economic partitioning system up to maximum widths of 19.7' and a roll-off length of up to 26.2', or a width of up to 23.0' and a roll-off length of up to 5m as standard with "Gravigen" drive system.
- Close without external energy, no fire-resistant cables necessary
- High number of cycles of the motors of 10,000 cycles
-Various protection goals achievable through different types of fabric. Large fire curtain systems at least class C 1
-Optional: safety contact strip, optional spring-loaded bottom bar
construction type | textile fire protection curtain |
fabric | Stoebich Fire & Smoke Fabric H • Fire & Smoke Fabric E |
fire load free zone | Meet backface temperature 250°F with sprinkler as compensation |
proof | UB III/B-06-005 • 3102/717/07 • UB 3.1/09-021 • UB III/B-08-012 • UB III/B-08-016 • UL 10 (b) (2009) • UL 10 (c) (2009) • UL 10 (d) (2009) • NFPA 252 (2012) |
closing direction | from top to bottom |
fire resistant | E 30 • E 60 • E 90 • EW 30 • EW 60 • 90 minutes fire rating according to UL 10D, 20 minutes fire rating according to UL 10B, UL 10C, NFPA 252 • Classified in compliance with DIN EN 13501-2 |
closing cycle | 10,000 cycles (drive unit) |
Downloads
1Smoke detector2Casing3Side guide4Fixing bracket5Fabric6Closing element7Tubular motor8Control module9Control with operating unit10Manual release
1Smoke detector2Casing3Side guide4Fixing bracket5Fabric6Closing element7Tubular motor8Control module9Control with operating unit10Manual release
Fabric | System width (SB) | Unrolled length (AL) | t | h |
|---|---|---|---|---|
Stoebich Fire & Smoke Fabric E | ≥ 3.6' - ≤ 9.8' | ≤ 9.8' | 7.87'' | 8.66'' |
Stoebich Fire & Smoke Fabric H | ≥ 3.6' - ≤ 9.8' | ≤ 9.8' | 7.87'' | 8.66'' |
Special sizes on request - Technically possible up to a width of 23.0' (Stoebich Fire & Smoke Fabric E) or 19.7' (Stoebich Fire & Smoke Fabric H)
bottom bar
Standard
standard
Special
Spring-loaded closing strip
TypeSpecial
alternatives for installation

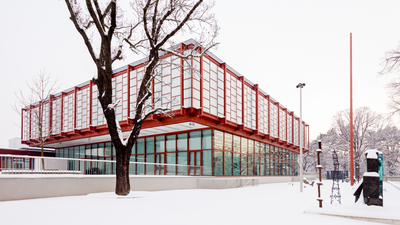

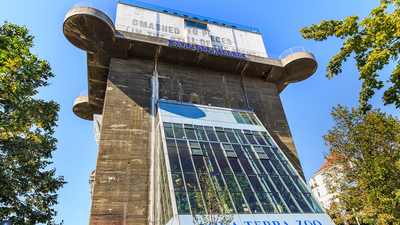

references
